MD2 DLG

MD2 DLG

Use contact form to get information about more colors available at the moment

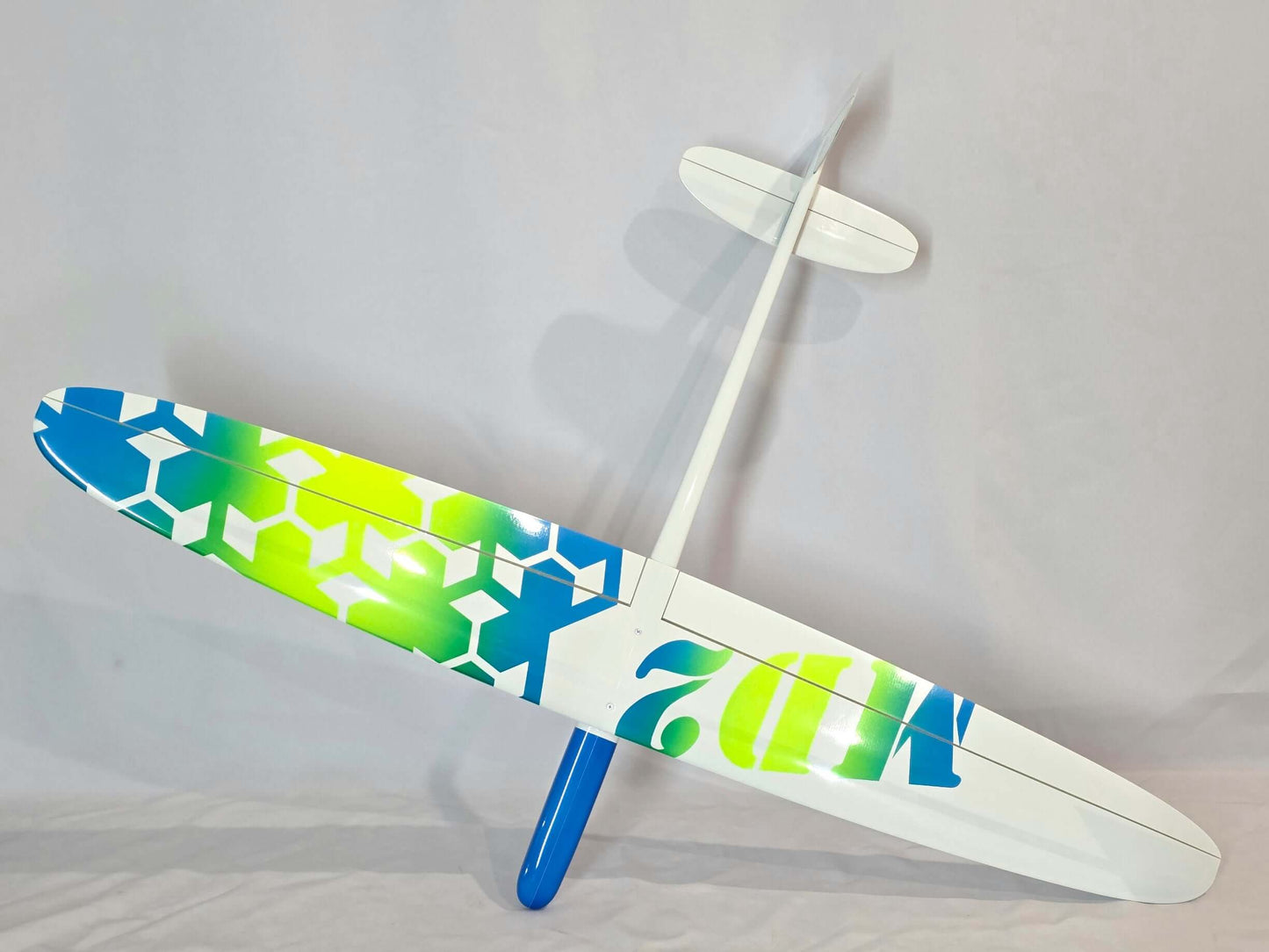

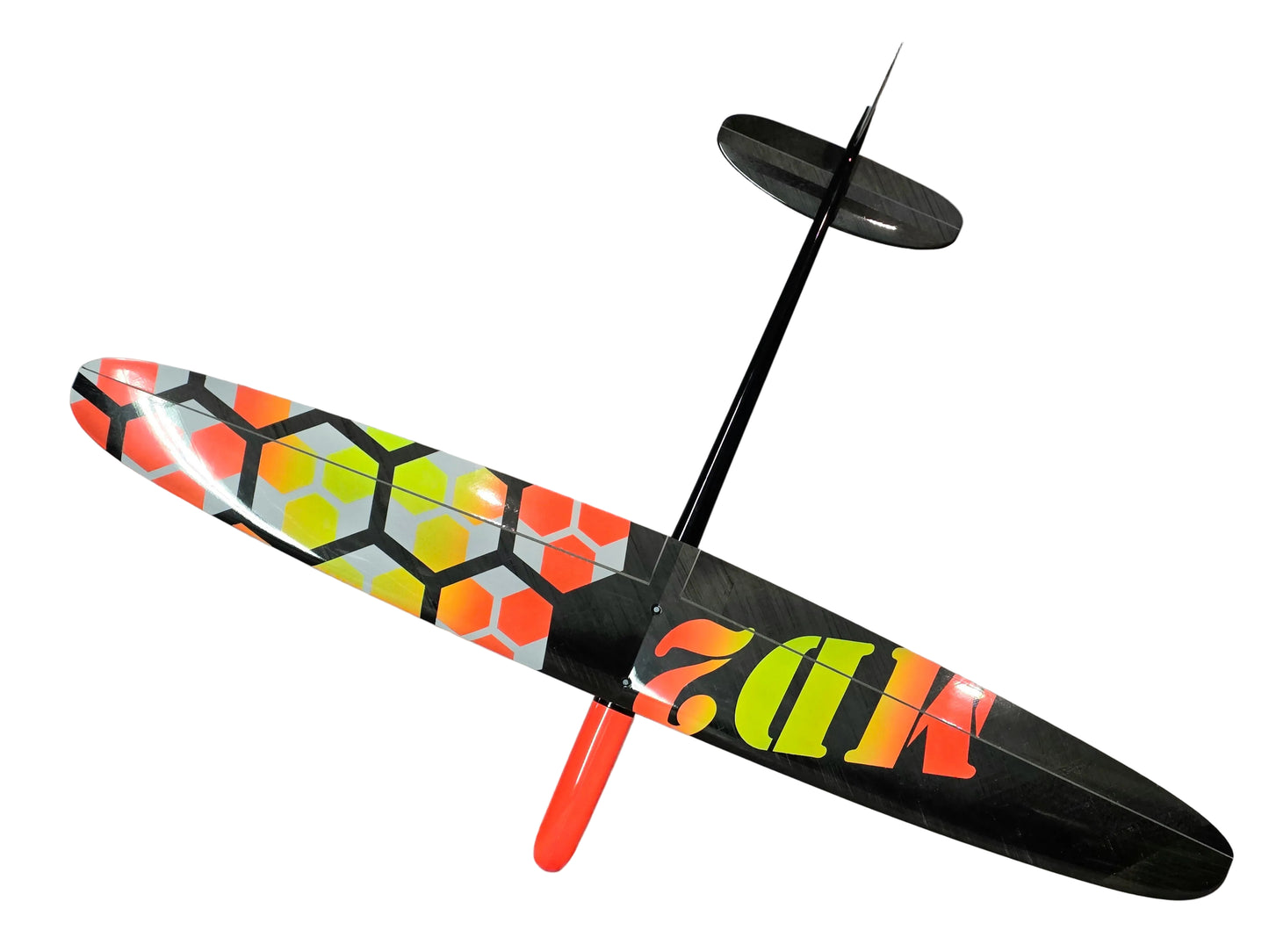

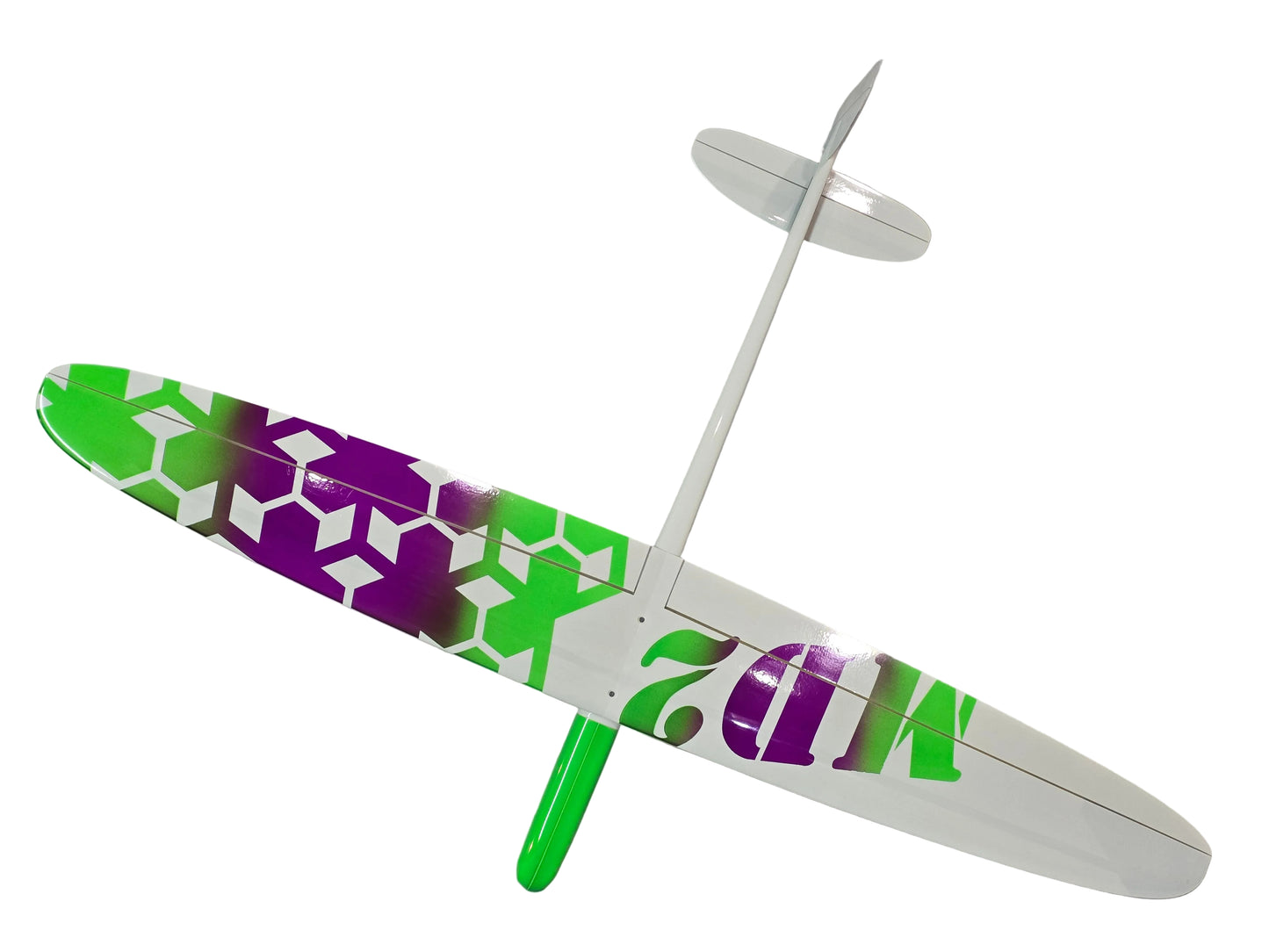

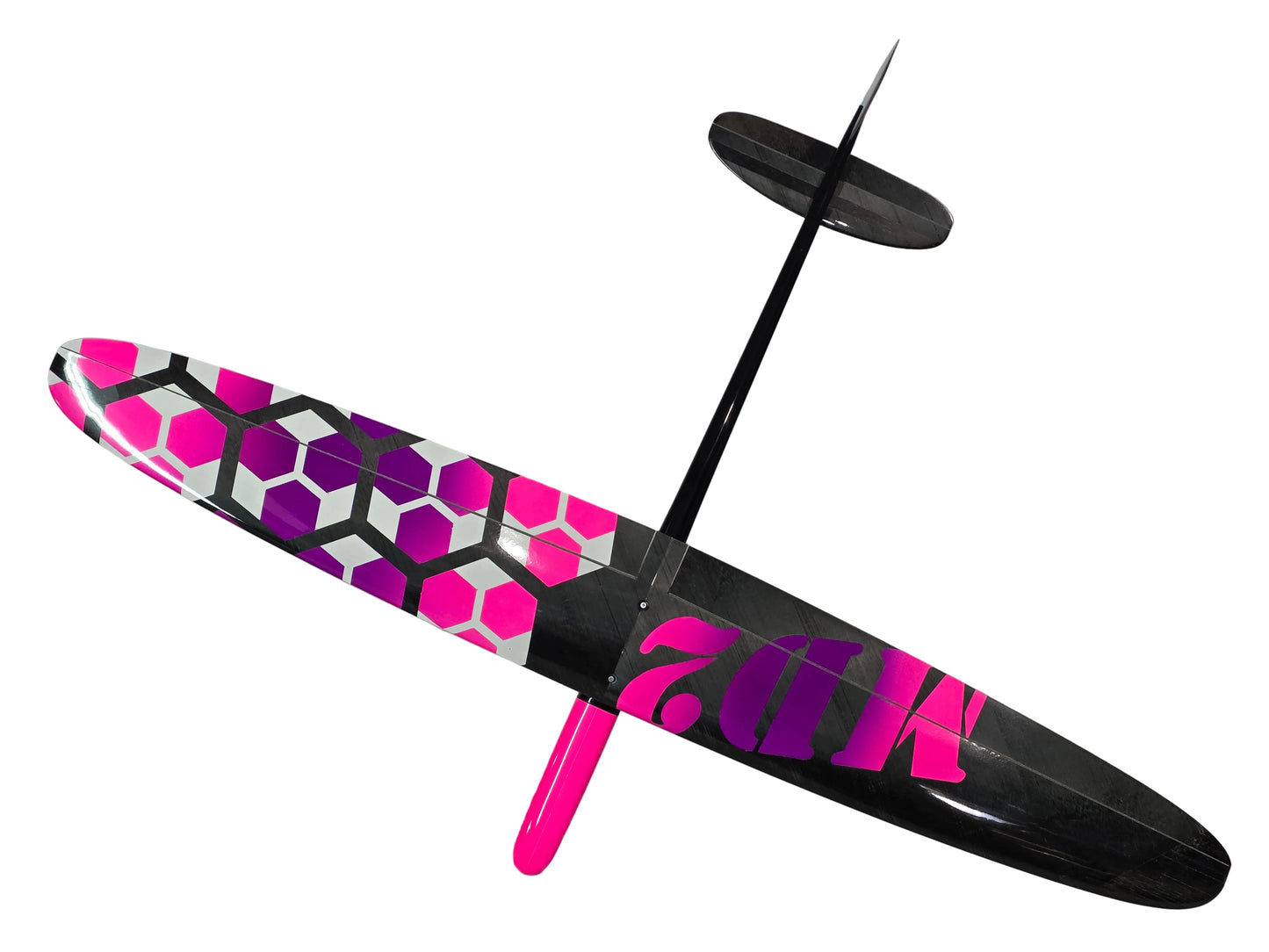

Mini Dart 2 is DLG model with 1m wingspan. Wing and tail made of XPS foam with fiberglass or carbon cover and carbon fiber spar. CNC machined cores provide high quality and precision of surfaces.

     Compered to previous version MD2 DLG have much spacious fuselage.

     Also there are a little changes with tail. We make elevator and rudder with torsions instead of carbon pushrods. Thats why stabilisator was moved to the bottom of tailboom. Torsions allows reduce backlash for cheap servos or no professional assembliing.

     Due to its small size and weight, even a child can handle this plane. Model’s dimensions allowed to fly on small areas (parkings, beaches)

Servoframe by default - 4* Blue bird BMS101

Available by request - 4* KST X06

Wingspan: 1 m
Wing area: 11.6 dm²
Wing airfoil: AG-45, AG-455, AG-46, AG-47
Stab. airfoil: HT-22
Stab. area: 1.3 dm²

Controls: rudder, elevator, ailerons

Worldwide shipping in strong wooden box directly from factory

MD2 assembly instructions
