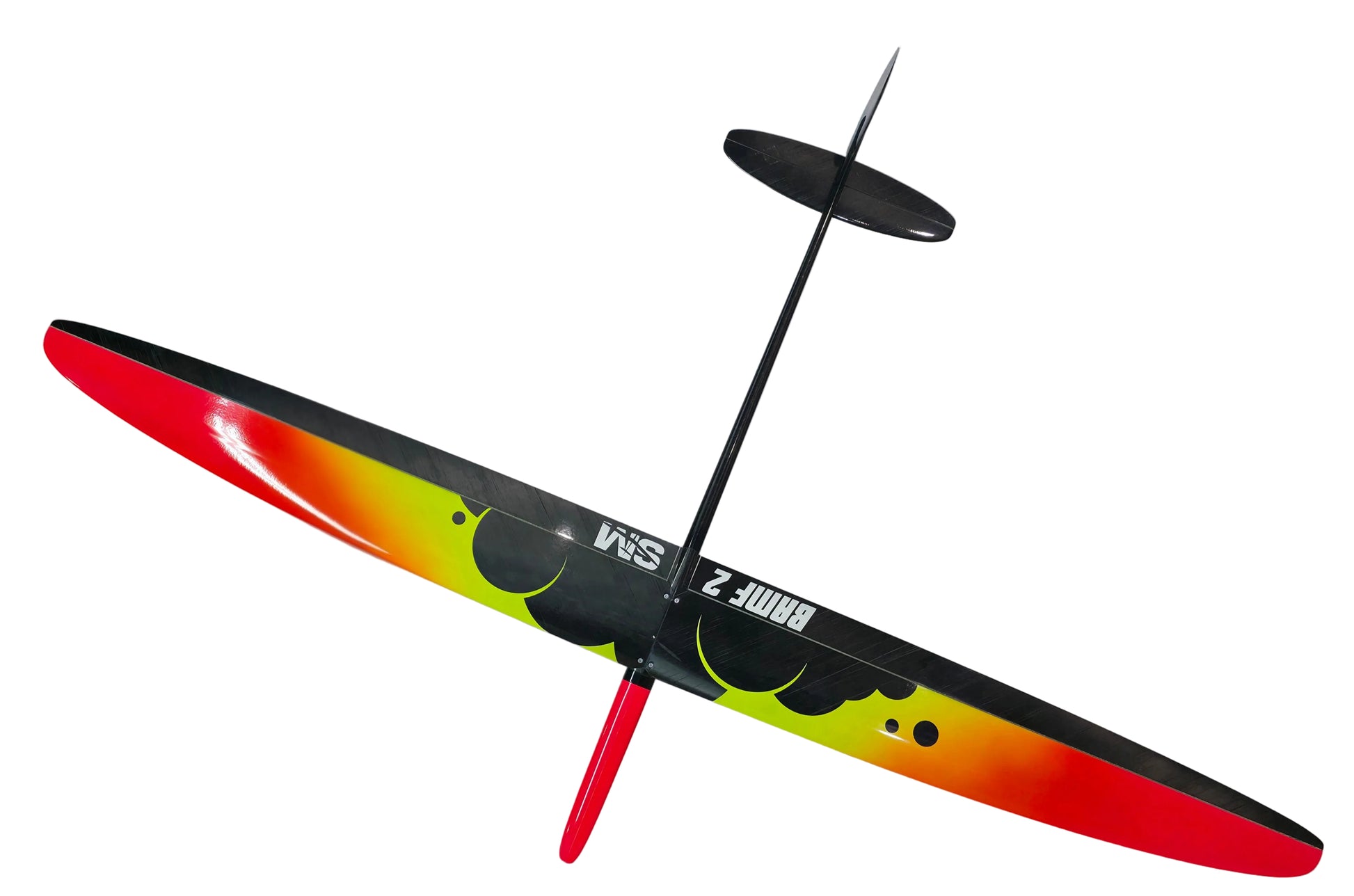

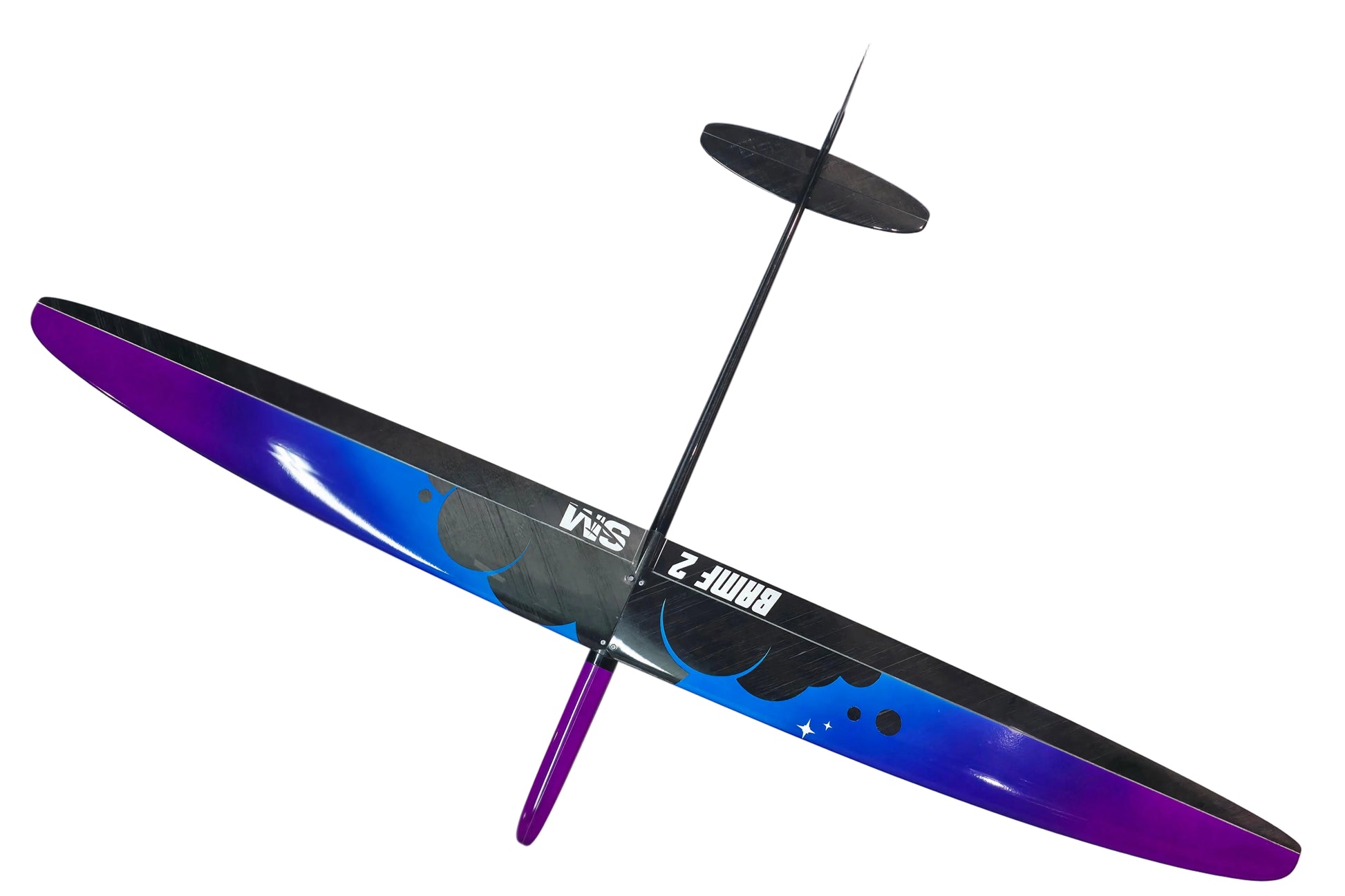

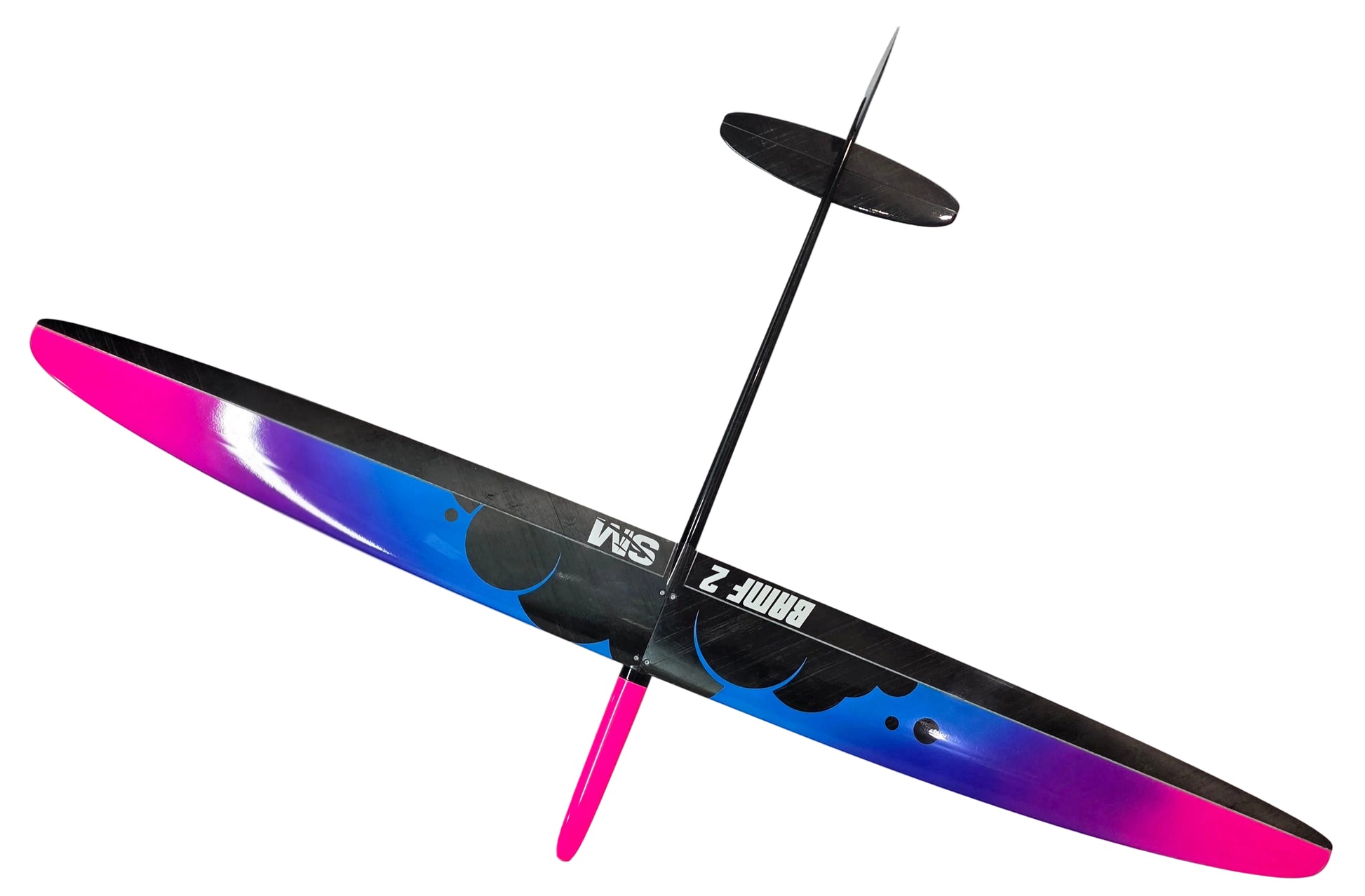

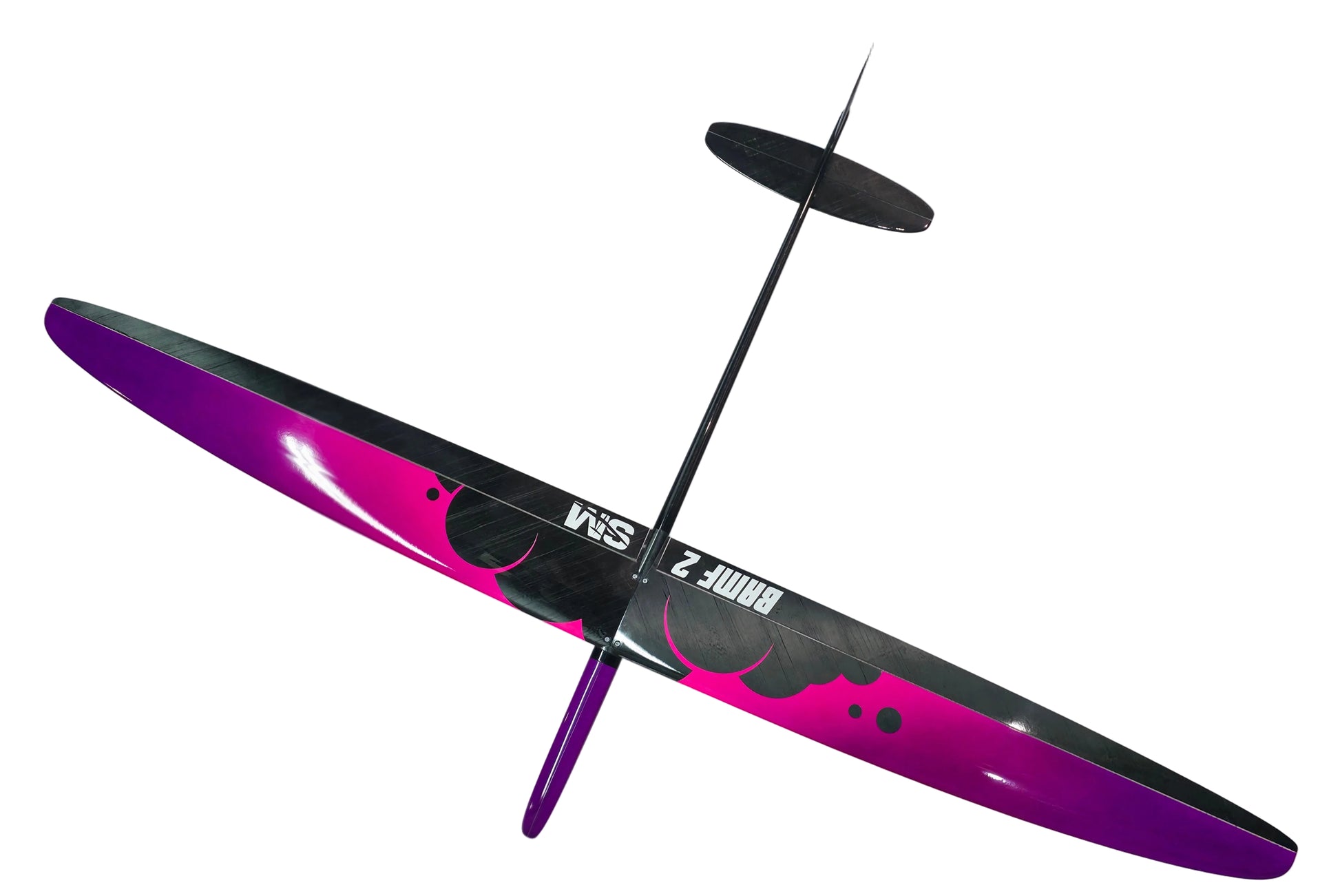

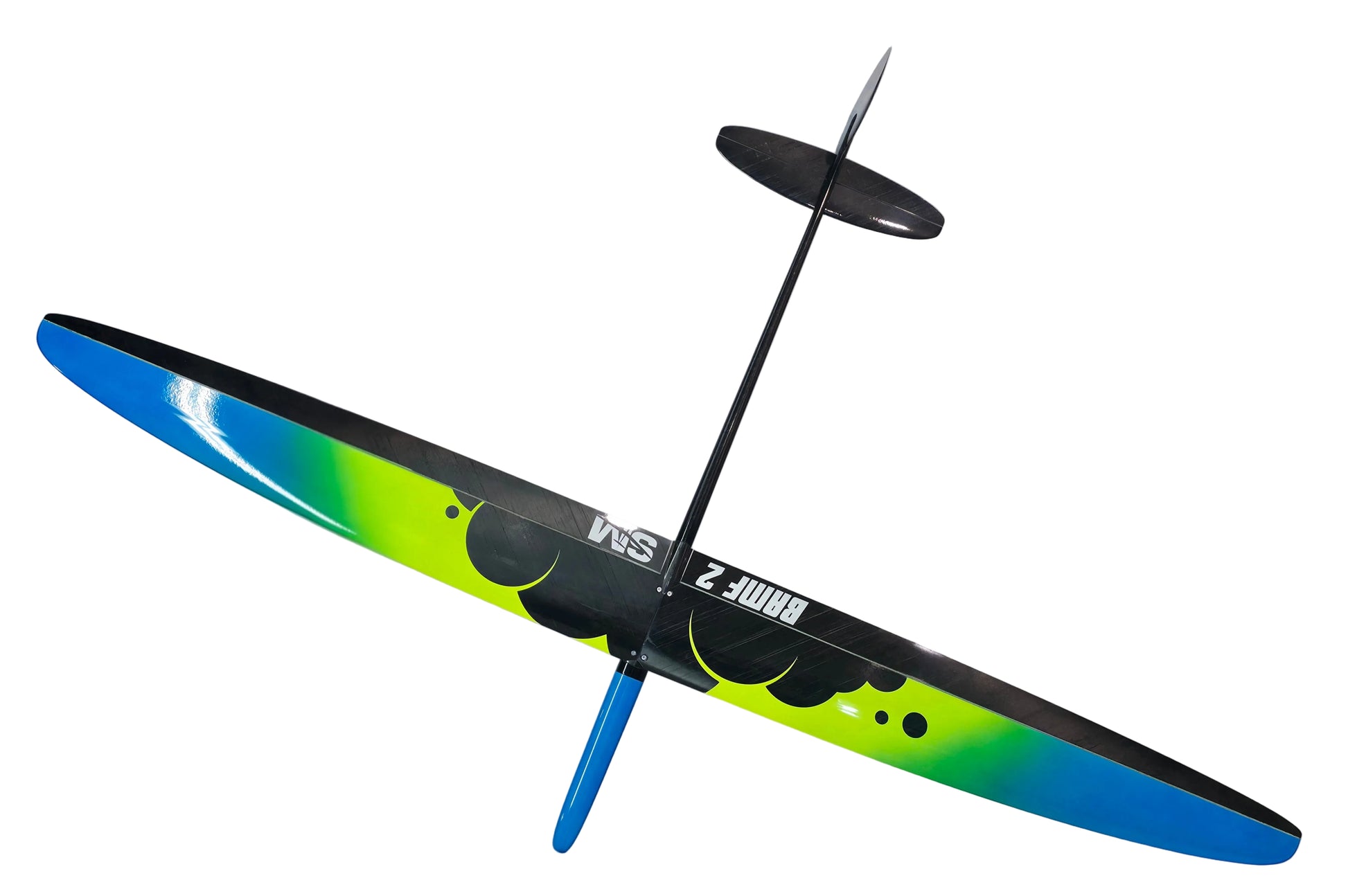

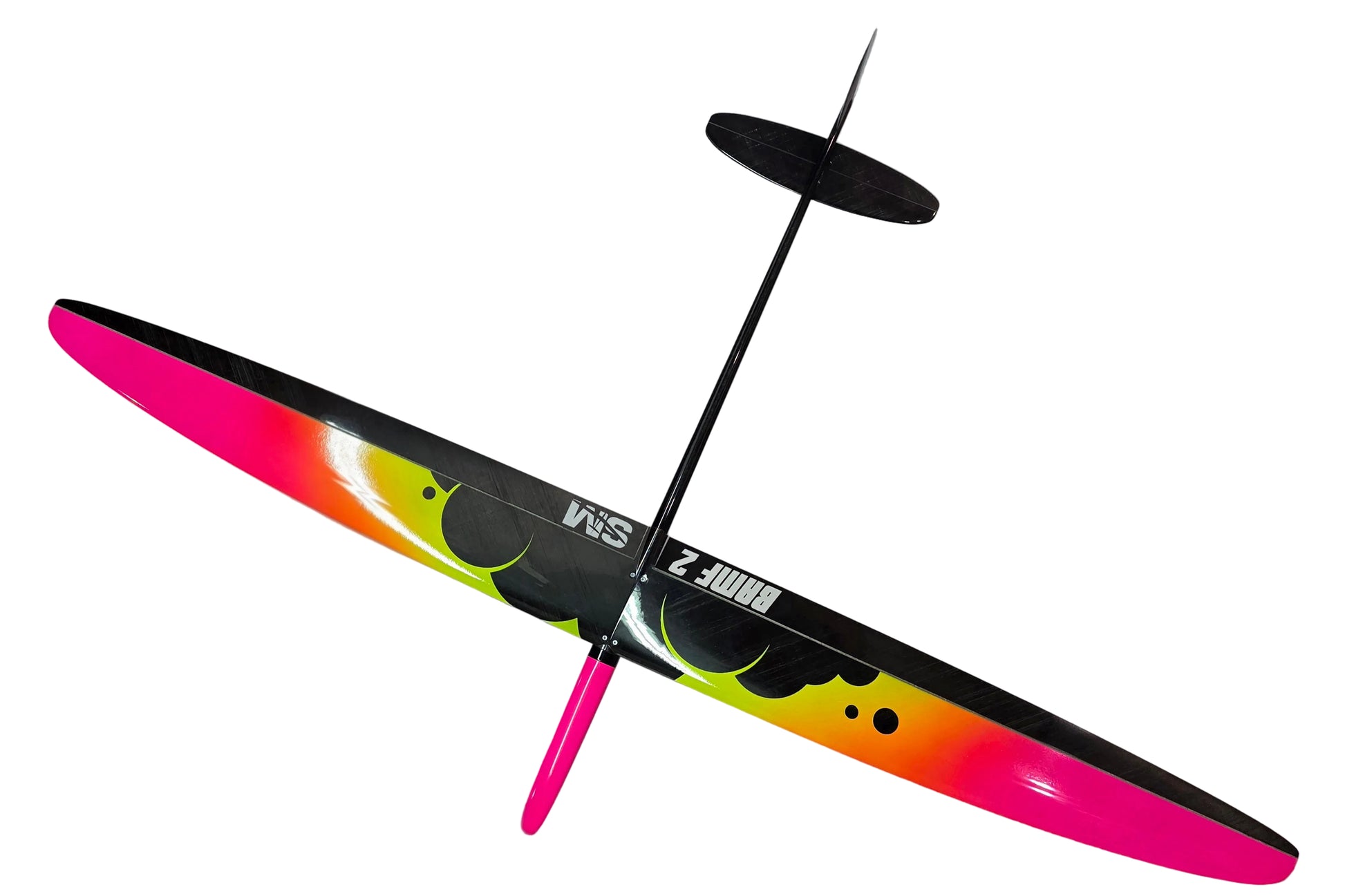

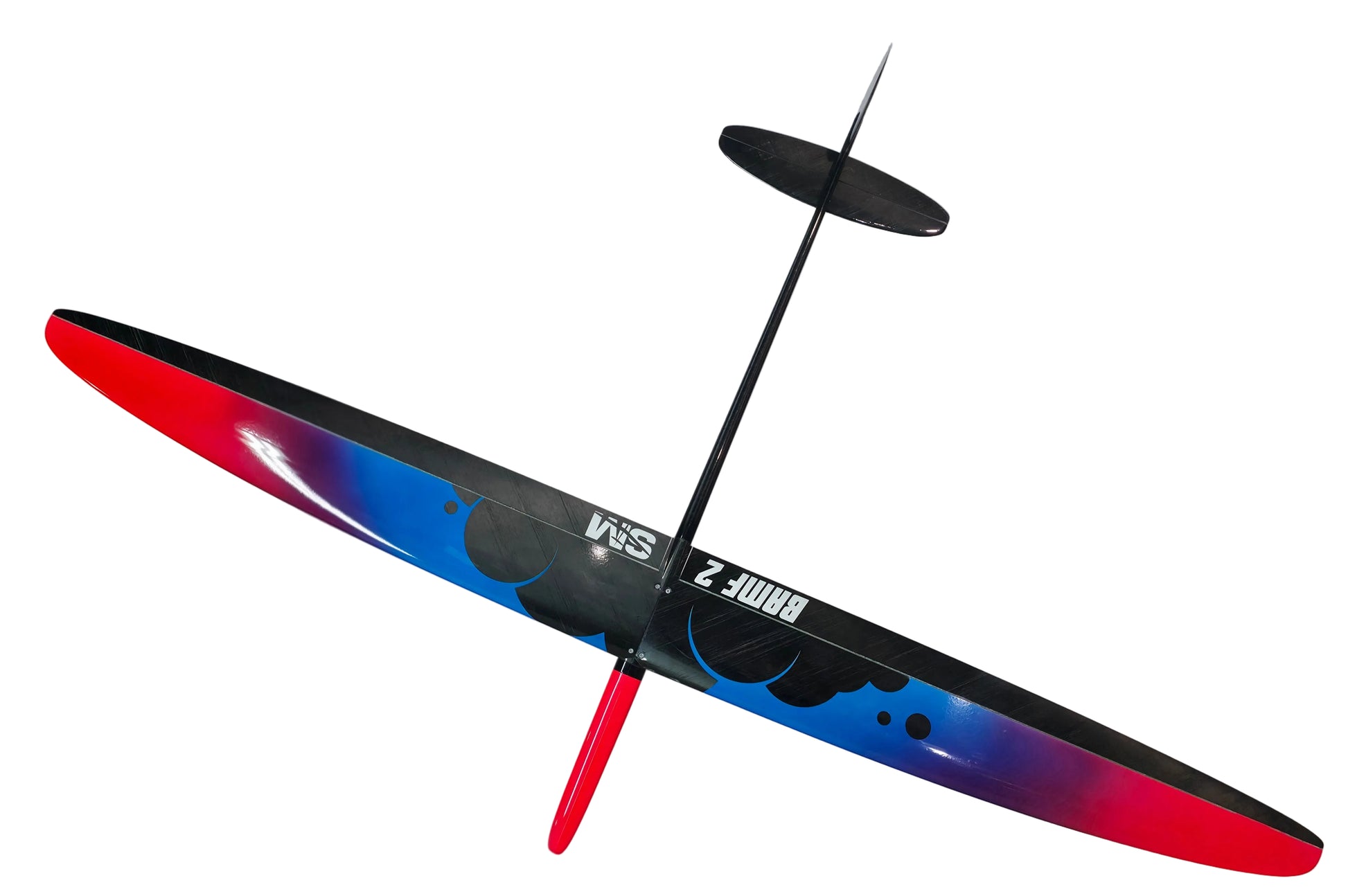

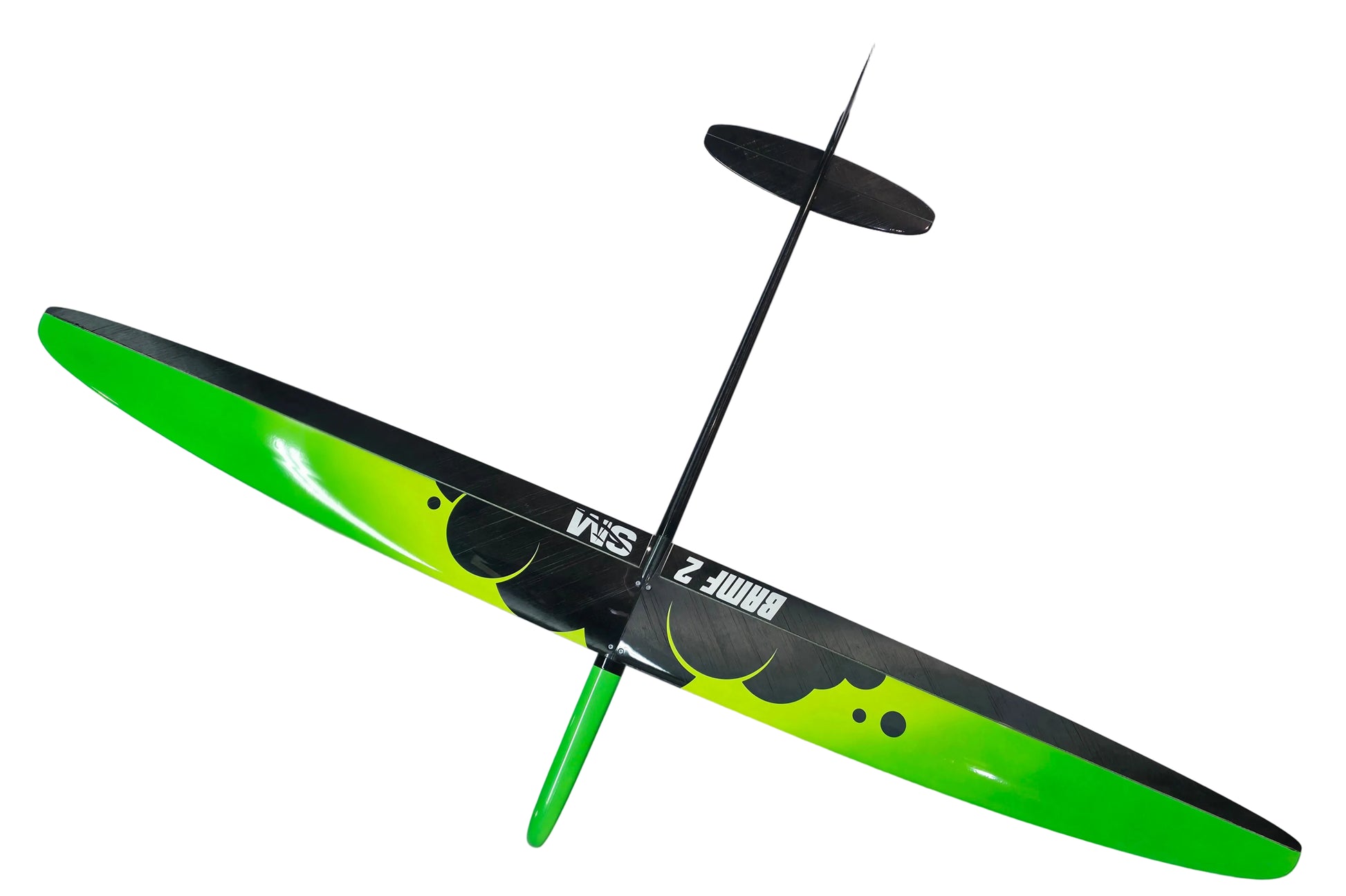

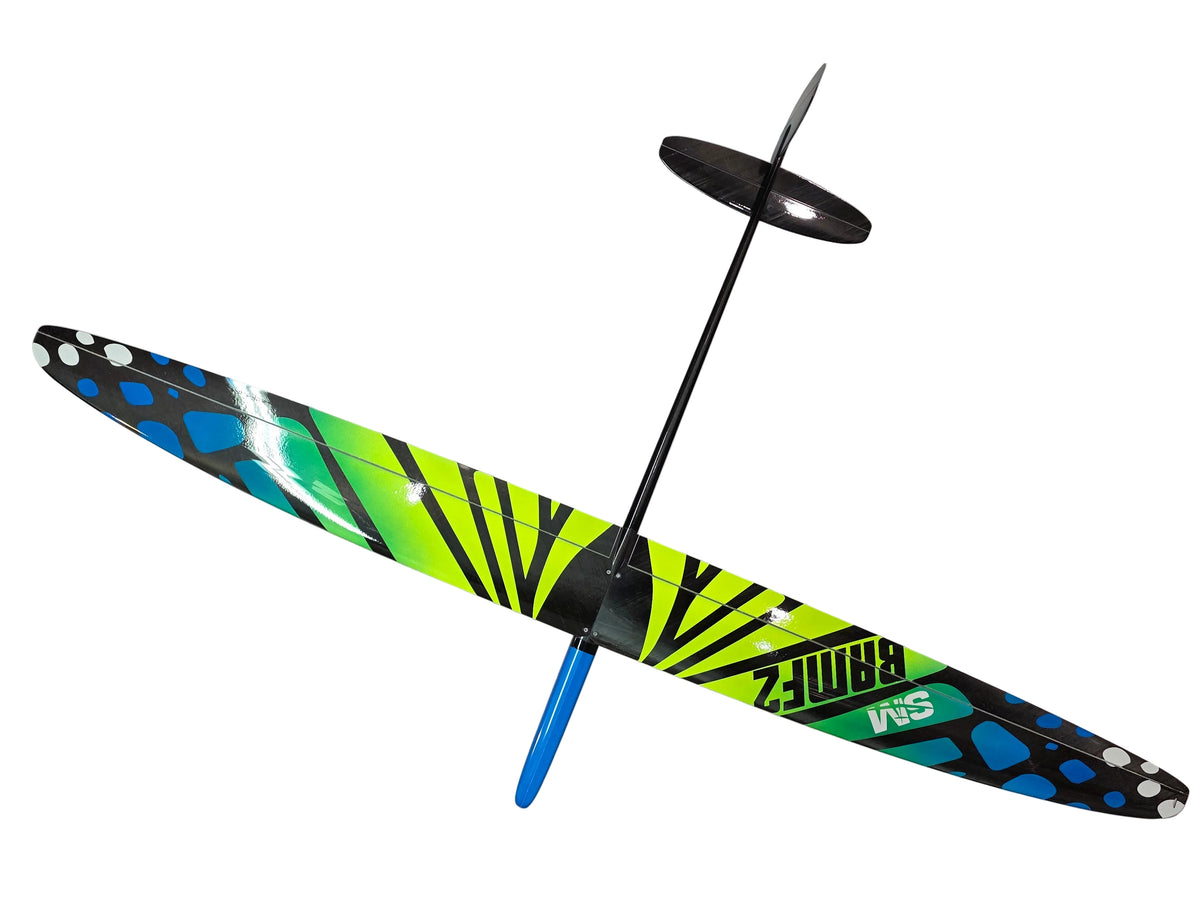

Bamf 2 1.5m two-piece wing DLG
Bamf 2 1.5m two-piece wing DLG
Couldn't load pickup availability
Bamf 2 1.5m two-piece wing DLG is the high-perfomance model designed by ArmSoar and manufactured by SoaringModels since 2022.
Bamf 2 made with a center-split 2-piece wing with a carbon joiner and an optional removable fin with a very simple mounting, strong enough for most pilots. For extremely powerful launchers, however, gluing the fin in place is still recommended.
The nose lenght is optimazed to reduce the need of noseweight and to make gear selection, install and maintenance extremely easy.
Items included to accessories set:
- 3D launch blade *1
- Wing control horns *2
- Rudder control horn *1
- Stabiliser control horn *1
- Wire for springs *4
- Wire for pull-string *2
- Crimps for pull-string *4
- Wing pushrod sleeves *2
- Wing metal pushrods *2
- Wing bolts *4
- Tail bolts *2
- Ballast tube *1
- Ballast clip *1
Structure:
- Solid Cascell moulded wing and tails
- Light: CW30 skin
- Standard: CW40 skin
- Strong: CW60 skin
- Tails: CW20 skin
- 1-piece fuselage
- 2-piece wing (centre split)
- Nosecone
- Right-handed launch (please message us for left-handed version)
- Removable wing
- Removable horizontal tail
- Removable vertical tail (optional during build)
Flight Characteristics:
- Incredibly high launching
- Cuts through wind and turbulence at low weight
Specifications:
- Wingspan: 1495 mm
- Wing area: 18.55 dm²
- Wing airfoil: modified Synergy 2
- Horizontal tail area: 2.0 dm²
- Light AUW: ~205-210 grams
- Standard AUW: ~215-220 grams
- Strong AUW: ~225-230 grams
Recommended Gear:
- Receiver: FrSky GR6, FrSky R6, Spektrum AR410, AR6610T, Futaba R3004SB
- Servos: 4* KST A08N v6, 4* X08N v6, 4* Chaservo LV06
- Battery: 1S LiPo 350 mAh or 500 mAh
Bamf 2 1.5m two-piece wing DLG available with worldwide shipping in strong wooden box directly from factory.
Contact us if color or layup you want not available at the moment.
10% tariffs may be applied for USA customers.
